Product features and parameters of fluid loading arm

The fluid loading and unloading arm (crane pipe) is connected in series by a flexible joint with good rotation and tightness to the pipeline, and is used to transport liquid medium between the tank truck and the trestle storage and transportation pipeline. Land fluid loading and unloading arm, a device for transferring liquid and gas products between ground equipment and a liquid tank truck (or other movable container). Formerly known as "Crane Pipe". Using double rigid tube structure.

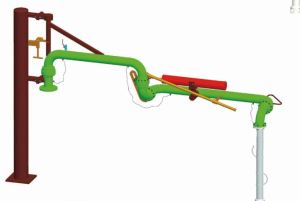

Typical single-tube land fluid loading arm at the bottom

This type of loading and unloading arm is designed for bottom loading and unloading operations of flanged couplings or quick couplings.

80059-F, 80069-F

Typical dual-tube land fluid loading arm at the bottom

This type of loading arm is designed for closed bottom loading and unloading operations (mainly used for liquefied gas, liquid ammonia, etc.)

The fluid loading and unloading equipment produced by Asta Company has a full range of specifications, safe and reliable use, light and flexible operation, convenient installation and maintenance, superior sealing performance, and has obvious advantages in the domestic industry.

Features:

Double-roller rotary joint and sealing ring with elastic card ensure that the loading and unloading medium does not leak;

The spring-cylinder balancer that balances with ease makes the loading and unloading arm easy and labor-saving;

During loading and unloading, it will follow the tank truck within the normal movement range of the tank truck;

When the loading and unloading arm is accommodated, the lock is parallel to the traveling direction of the tank truck and takes up little space;

The main parameters:

Applicable medium: various liquid and gaseous products;

Nominal caliber: DN50-DN150;

Design temperature: -196 ° C-250 ° C;

Design pressure: -0.08 Mpa — 6.0 Mpa;

Pipe material: carbon steel, stainless steel, liner;

The above are the product features and parameters of the fluid loading arm described by Xiaobian. You can simply understand it. The content is provided by Lianyungang Hengjiang Petrochemical Machinery Equipment Co., Ltd., a manufacturer of crane pipes for many years. The quality is reliable. If you need advice, you can contact us.
